Overview

HPCC

RINAC’s Walk-In Coolers are designed for long-term storage of large quantities of vaccines at temperatures between +2°C to +8°C. It ensures optimal preservation under varied ambient conditions, making it suitable for pharmaceutical and healthcare applications.

RINAC’s Walk-In Freezers are modular, prefabricated cold storage solution designed for long-term storage of vaccines at temperatures between -18°C to -20°C. The freezers come in various capacities ranging from 16.5 to 40 cubic meters and are designed to operate efficiently in extreme ambient conditions.

Salient Features

Walk-In Coolers:

  • Construction: Modular, pre-fabricated RPUF panels with floor and ceiling panels.
  • Refrigeration: Dual independent refrigeration systems with automatic/manual switchover.
  • Temperature Control: Digital thermostat with high accuracy (±0.5°C).
  • Safety Features: Fail-safe lockable door, alarm system for temperature deviations, power failure, and open door alerts.
  • Lighting & Shelving: Energy-efficient LED lighting and adjustable stainless steel or anodized aluminium shelves.
  • Environmental Compliance: CFC-free insulation and refrigerant.

Walk-In Freezers:

  • Construction: Made from RPUF insulated prefabricated panels with stainless steel inner skins and powder-coated galvanized steel outer panels.
  • Dual Refrigeration System: Two independent refrigeration systems ensure reliability, with automatic/manual switchover in case of failure.
  • Refrigeration Units: Wall-mounted monoblock or split system with weatherproof outdoor condenser units.
  • Flooring: Multi-layered with reinforced granolithic concrete, non-slip aluminium checker plate, and vapour barrier.
  • Door System: Self-closing, heavy-duty, lockable with an emergency escape mechanism, and equipped with plastic curtains.
  • Lighting: Low-energy LED or fluorescent lights with external controls and a minimum illumination level of 150 lux.
  • Temperature Control: Digital thermostat with ±0.5°C accuracy, ensuring uniform storage temperatures.
  • Alarm & Monitoring: Audible and visual alarms with battery backup, automatic data logging, and real-time temperature recording.
  • Shelving: Adjustable, non-corrosive stainless steel or anodized aluminium shelving to optimize storage space.

Benefits

Variants

Advantages



Walk-In Coolers

Model options based on storage capacity:

  • RINWIC-16: 16.5 cu. m.
  • RINWIC-20: 20 cu. m.
  • RINWIC-32: 32 cu. m.
  • RINWIC-40: 40 cu. m.

Walk-In Freezers

  • RINWIF-16: 16.5 cubic meters
  • RINWIF-20: 20 cubic meters
  • RINWIF-32: 32 cubic meters
  • RINWIF-40: 40 cubic meters



Technical Specifications

Walk-In Coolers

  • Temperature Range: +2°C to +8°C (adjustable).
  • Capacity: 16.5, 20, 32, and 40 cubic meters.
  • Insulation: 100mm thick CFC-free RPUF panels with thermal conductivity of 0.17 W/m²K or better.
  • Flooring: Multi-layered with non-slip aluminium checker plate, supporting up to 1500 kg/m².
  • Door: Self-closing, lockable, with an examination window and plastic curtains.
  • Refrigeration System: Dual refrigeration (3.5 to 6.0 kW compressor), automatic defrosting, tropicalized for up to 45°C ambient temperature.
  • Alarm & Monitoring: Digital temperature logging with a 10,000-data storage capacity, battery-backed alarm system.

Walk-In Freezers

  • Temperature Range: -18°C to -20°C, adjustable.
  • Compressor Power: 3.5 to 6.0 KW (varies with size).
  • Panel Thickness: Minimum 100mm with high-density (≥40 kg/m³) insulation.
  • Structural Features: Airtight seals, modular cam-lock panel assembly, and CFC-free insulation.
  • Cooling System: Forced-air evaporator with automatic defrosting.
  • Alarm System: Includes power failure, high pressure, open door, and probe failure alarms.

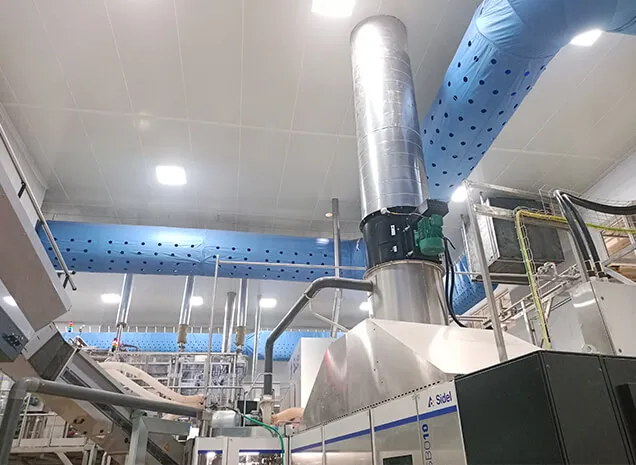

Portfolio - All Rinac Projects
