Make your Roof look funky! Protect from rain and sun !

Project Overview

HPCC

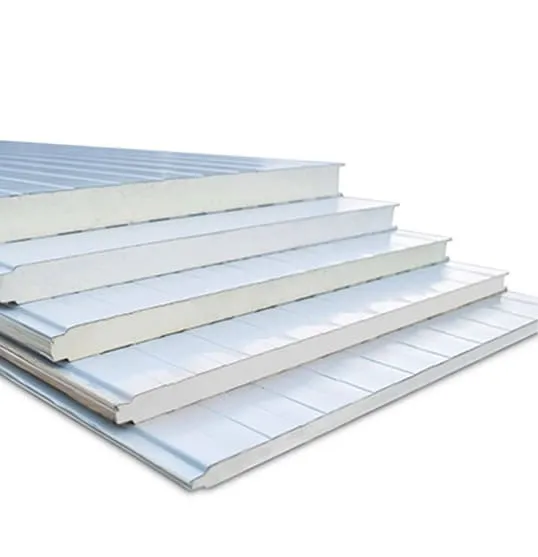

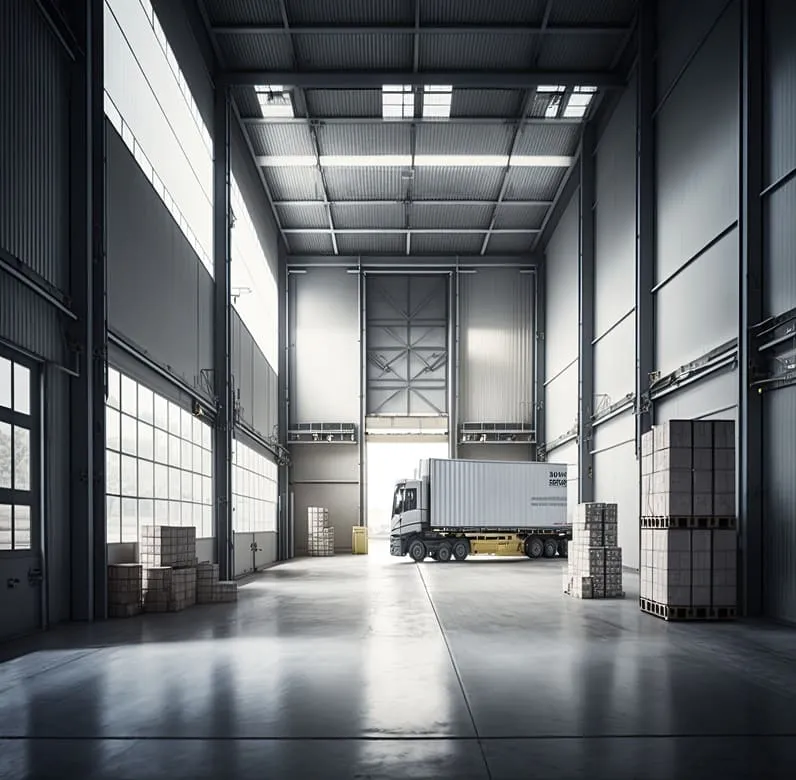

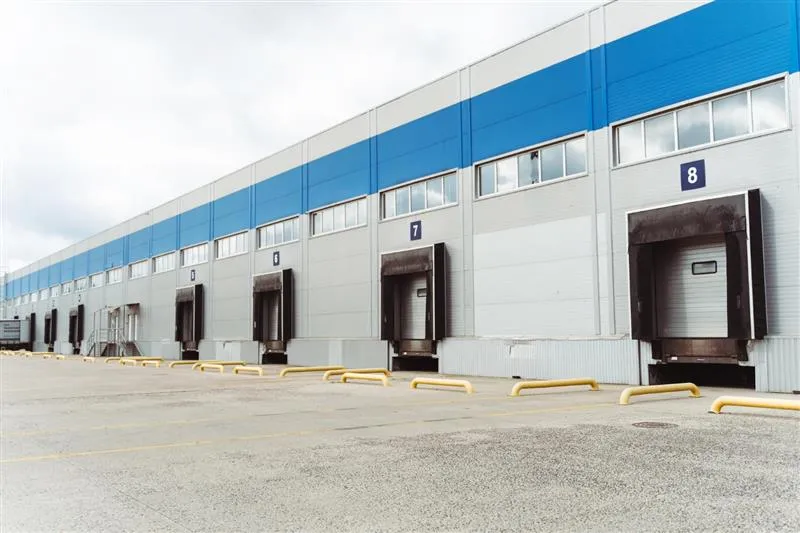

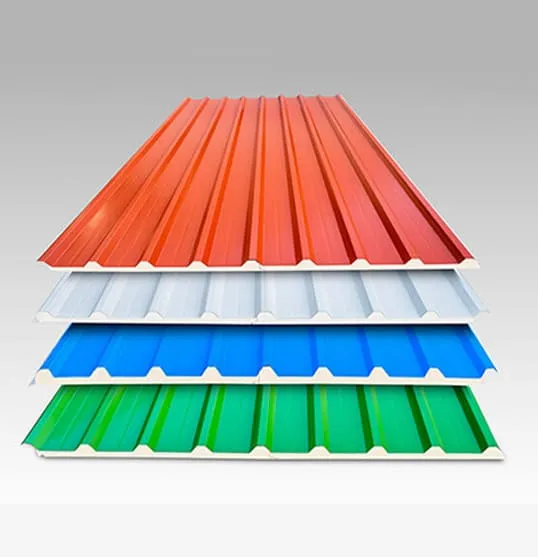

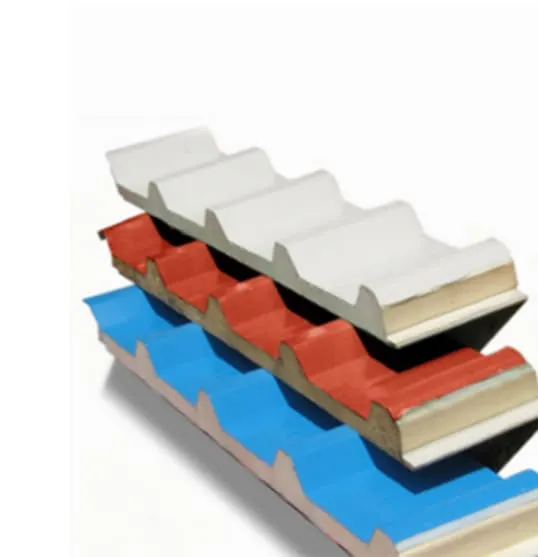

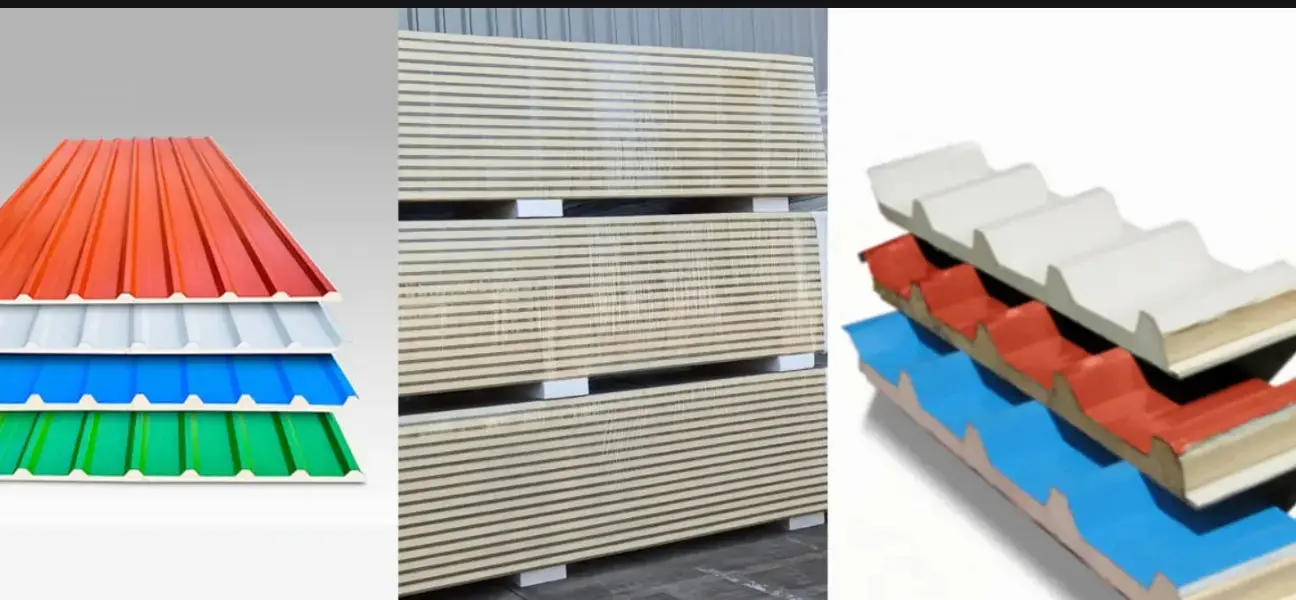

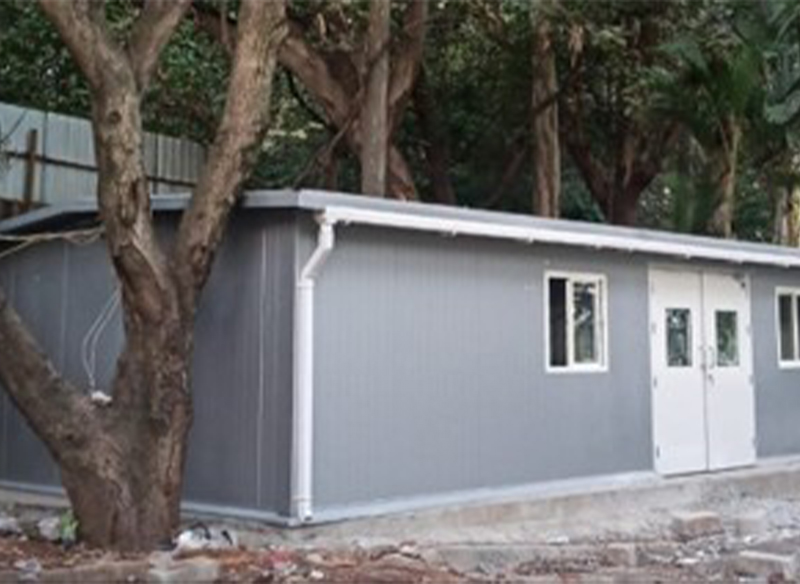

InstaRoof is Rinac’s modular insulated roofing panel system available in 30mm and 50mm thickness options, with PUF or PIR (fire-rated) cores. Interlocking joints help improve airtightness, making it suitable for warehouses, factories, cold-chain support spaces, and controlled environments.

  • Panels lock together, offer an airtight seal that prevents air leakage and improves energy efficiency therefore saving heating or cooling costs
  • Great load bearing capacity. Purlin support need only 2440mm spacing
  • Pre-painted Galvalume [AZ150] as external sheet for excellent corrosion resistance
  • Good insulation provides better thermal barrier and reduces sounds considerably.
  • Available in Fire-rated PIR panels or non-fire rated PUF panels

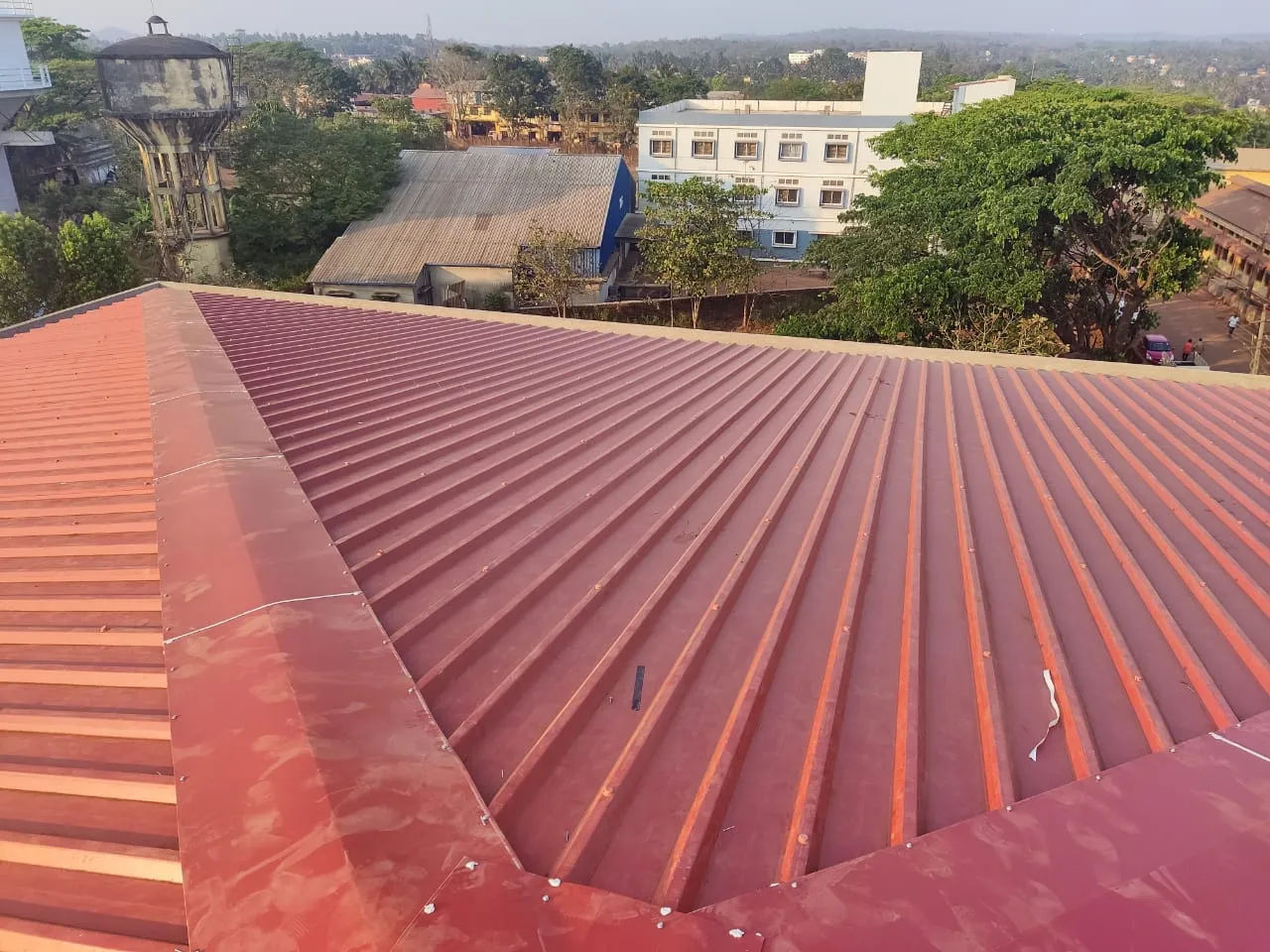

Videos

Salient Features

  • Exceptional Insulation: Keeps interiors cool in summer and warm in winter, reducing energy consumption and operational costs.
  • All-Weather Reliability: Engineered to withstand extreme conditions, including heavy rains, high winds, and intense sunlight.
  • Corrosion and UV Resistance: Ensures long-term durability and aesthetic appeal.
  • Enhanced Structural Integrity: Provides robust protection, ensuring longevity and reliability.
  • Wide Range of Options: Made of PUF or PIR , available in various sizes, finishes, and colours to meet specific industry needs.
  • Seamless Integration: Easily integrates with existing structures and aligns with modern architectural designs.

Benefits of InstaRoof

Why choose InstaRoof PUF or PIR roofing panels?

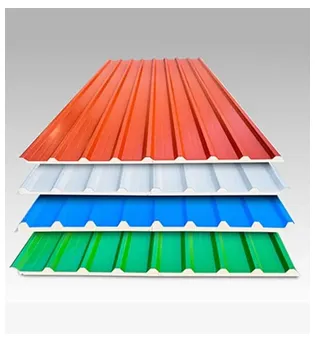

Advantages
  • Innovative Roofing Solution for Modern Needs: Rinac’s InstaRoof is a revolutionary roofing product designed to meet the dynamic needs of modern construction.
  • Its unique modular design ensures quick and hassle-free installation, reducing project timelines significantly.
  • With an advanced interlocking system and lightweight panels, InstaRoof offers superior durability and load-bearing capacity, making it an ideal choice for industrial, commercial, and residential applications.
  • Its eco-friendly composition further aligns with the global push toward sustainable construction practices, offering a green alternative without compromising on strength or performance.
  • Better fire resistance is available with the InstaRoof PIR panel variant if required by the customer.

Technical Specification

Materials PUF, PIR
Packing width 1085mm
Packing length InstaRoof RP-20
InstaRoof RP-18
InstaRoof RP-16
InstaRoof RP-14
InstaRoof RP-12
Panel thickness 30mm core and 50mm core with 38mm crust
Lamination thickness in mm 0.4 / 0.35 Outside/Inside
Internal sheet colour Off white [RAL 9002]
Support Purlin support needed every 8 feet [2440 mm]
Area of panel in a packet 6.1 Sqm / 65.6 Sq.ft
5.48 Sqm / 58.9 Sq.ft
4.3 Sqm / 46.5 Sq.ft
4.9 Sqm / 52.5 Sq.ft
3.7 Sqm / 39.4 Sq.ft
Ordering code InstaRoof 30-20 / InstaRoof 30-18 / InstaRoof 30-16
InstaRoof 30-14 / InstaRoof 30-12 / InstaRoof 50-20
InstaRoof 50-18 / InstaRoof 50-16 / InstaRoof 50-14
InstaRoof 50-12
Ordering quantity [UOM] No. [of Panel]

Portfolio - All Rinac Projects

DOWNLOAD ALL PRODUCT BROCHURES NOW

Gain instant access to detailed product specifications, key features, and the benefits of partnering with Rinac

Applications

Blogs

CUTTING-EDGE TECHNOLOGY AT WORK

Why Choose InstaRoof for Your Construction Needs

Panels lock together, offer an airtight seal that prevents air leakage and improves energy efficiency therefore saving heating or cooling costs

Frequently Asked Questions

InstaRoof panels are available through Rinac’s sales network across India. Our team works closely with customers to understand their project requirements and recommend the most suitable roofing solution. Contact us to connect with the nearest sales representative or authorized channel partner.

You can request a customized quotation by sharing your project details, including the building dimensions, roof area, application, and location. Our experts will assess your requirements and provide a solution tailored to your project along with a detailed commercial proposal.

Product availability depends on the panel specifications, quantity, and project requirements. Standard configurations may be available within shorter timelines, while customized solutions are manufactured according to project schedules. Our team will provide an estimated delivery timeline during the quotation process.

Yes. Rinac supports deliveries across India and can also assist with international project requirements, subject to location and logistics feasibility. Our team coordinates transportation to ensure timely and secure delivery to project sites.

The minimum order quantity depends on the project scope and product specifications. Whether you require roofing for a small commercial building or a large industrial facility, our team can recommend the most suitable order quantity based on your requirements.

InstaRoof panels are manufactured using quality-controlled processes and premium raw materials to deliver reliable thermal performance and structural integrity. For information on specific certifications applicable to your project, our technical team can provide the relevant documentation upon request.

InstaRoof panels are designed with safety and performance in mind. Fire performance depends on the selected panel configuration and project specifications. Our team can recommend suitable roofing solutions based on your project’s fire safety requirements and applicable standards.

Yes. InstaRoof panels are engineered to withstand demanding weather conditions while providing effective thermal insulation. Their insulated construction helps reduce heat transfer, improve indoor comfort, and deliver reliable performance throughout the year.

InstaRoof is designed to support energy-efficient building practices by reducing heat gain and improving indoor thermal performance. Depending on the project requirements, our team can provide guidance on applicable sustainability standards and green building initiatives.

InstaRoof panels are manufactured to support modern construction requirements and are suitable for a wide range of industrial, commercial, agricultural, and residential applications. Compliance with project-specific building codes can be discussed with our technical experts during the design stage.

InstaRoof panels are manufactured using high-quality metal facings with an insulated core designed to provide excellent thermal performance, durability, and structural strength. This combination helps improve energy efficiency while offering long-term weather protection.

Quality is maintained through controlled manufacturing processes, rigorous inspections, and adherence to defined quality standards. Every stage of production is monitored to ensure consistency, dimensional accuracy, and dependable product performance.

InstaRoof panels are produced using advanced manufacturing technologies and precision engineering to ensure consistent quality and long-lasting performance. Carefully controlled production processes help achieve superior panel strength, finish, and dimensional stability.

InstaRoof panels are engineered to deliver dependable thermal insulation and structural performance for diverse building applications. Our technical team can provide product specifications and performance data relevant to your project’s requirements.

Rinac employs precision manufacturing processes and strict quality checks to ensure consistent panel dimensions, accurate profiling, and high-quality surface finishes. This helps simplify installation while delivering a secure fit and professional appearance.

The insulated core of InstaRoof panels helps minimize heat transfer through the roof, maintaining cooler indoor temperatures during hot weather. This improved thermal performance can reduce the load on air-conditioning systems and contribute to lower energy consumption.

Yes. InstaRoof is suitable for a wide range of applications, including residential homes, commercial buildings, warehouses, factories, educational institutions, agricultural facilities, and industrial structures. Its versatility makes it an ideal roofing solution for diverse project requirements.

Yes. InstaRoof panels can be configured to meet different project requirements, including panel dimensions, finishes, colours, and roof designs. Our team works closely with architects, consultants, and contractors to deliver solutions tailored to each project.

InstaRoof panels are designed for long-term durability when installed and maintained correctly. Routine inspections and basic maintenance, such as cleaning roof surfaces and checking fasteners and sealants, help ensure optimal performance throughout their service life.

Yes. InstaRoof panels are designed for efficient installation, helping reduce construction time compared to many conventional roofing systems. Depending on the existing roof condition and structural assessment, they can also be considered for retrofit applications.
